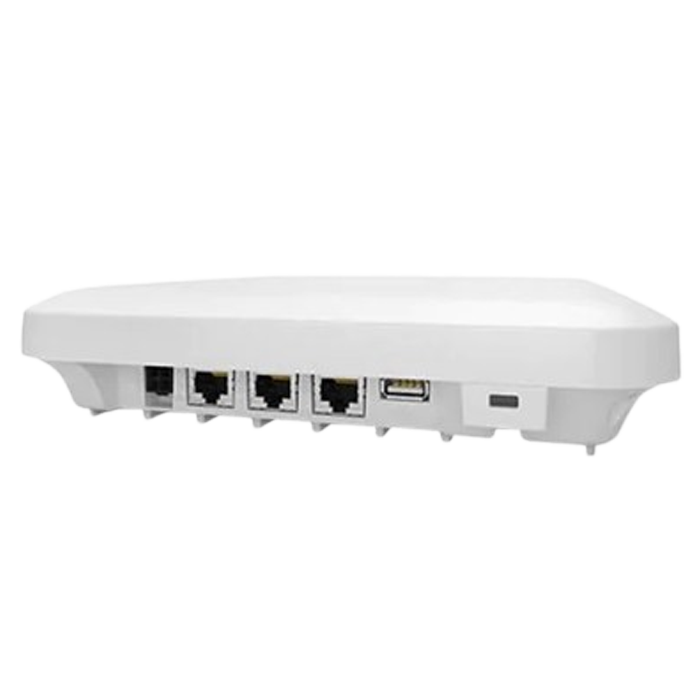

[AP-8432-680B30-1-WR] Extreme AP8432 Access Point, Tri-Radio/4x4:4 MU-MIMO/Int. Antenna
Quick Spec
Model AP-8432-680B30-1-WR
Wi-Fi standards supported 802.11a/b/g/n/ac Wave 2
Maximum data rate 2.2 Gbps
Radio frequencies supported 2.4 GHz, 5 GHz
Antenna gain 5 dBi (2.4 GHz), 8 dBi (5 GHz)
Radio chains and streams 2x2:2 (2.4 GHz), 2x2:2 (5 GHz)
Ethernet ports 1 x 1 Gbps Ethernet (RJ-45) port
Power options 802.3at PoE+ or external power supply
Maximum power consumption 22 watts
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%
฿0
฿0
Operating temperature range -40°C to 65°C (-40°F to 149°F)
Storage temperature range -40°C to 85°C (-40°F to 185°F)
Operating humidity 5% to 95% non-condensing
Storage humidity 5% to 95% non-condensing
Dimensions (H x W x D) 11.9" x 11.9" x 4.1" (302mm x 302mm x 105mm)
LED indicators Power, Ethernet, and Wi-Fi status
Security features WPA2-Enterprise, 802.1X authentication, RADIUS support
Management features ExtremeCloud IQ, SNMP, HTTP/HTTPS, CLI, SSH
QoS features 802.11e/WMM, 802.1p, DiffServ
Standards compliance RoHS, WEEE, CE, FCC Part 15 Class B, ICES-003 Class B
Ruggedization IP67 weatherproof rating, MIL-STD-810G, IK10
