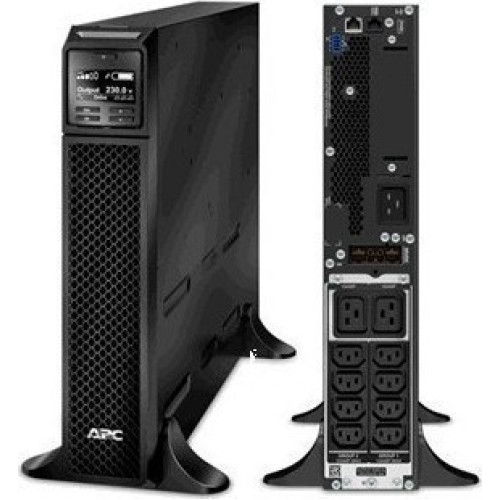

[SRT2200XLI] ราคา ขาย จำหน่าย APC Smart-UPS SRT 2200VA 230V

ประเภทสินค้า อุปกรณ์ APC Smart-UPS แบบ Tower

Output

• Output power capacity
  1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts)
  1.98 KWatts / 2.2 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 2%
• Output Frequency (sync to mains)
  50/60Hz +/- 3 Hz
• Other Output Voltages
  220, 240
• Load Crest Factor
  3 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave
• Output Connections
  (8) IEC 320 C13 (Battery Backup)

  (2) IEC 320 C19 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)
• Bypass
  Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage
  230V
• Input frequency
  40 - 70 Hz (auto sensing)
• Input Connections
  IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Cord Length
  2.44meters
• Input voltage range for main operations
  160 - 275V
• Input voltage adjustable range for mains operation
  100 - 275 (half load)V
• Number of Power Cords
  1
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules
  1
• Typical recharge time
  3hour(s)
• Replacement Battery
  APCRBC141
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  1
• Extendable Run Time
  1
• Battery Volt-Amp-Hour Capacity
  367
• Extended Run Options
  APC-Smart-UPS-SRT-2200VA-230V
• Runtime

  View Runtime Chart
• Efficiency


Communications & Management

• Interface Port(s)
  RJ-45 Serial , Smart-Slot , USB
• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  340Joules
• Filtering
  --

Physical

• Maximum Height
  432mm , 43.2cm
• Maximum Width
  85mm , 8.5cm
• Maximum Depth
  584mm , 58.4cm
• Net Weight
  25.0kg
• Shipping weight
  30.84kg
• Shipping Height
  246mm , 24.6cm
• Shipping Width
  599mm , 59.9cm
• Shipping Depth
  810mm , 81.0cm
• Color
  Black
• Units per Pallet
  12.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95% non-condensing %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95% non-condensing %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  55.0dBA
• Online thermal dissipation
  703.0BTU/hr
• Protection Class
  IP 20

Conformance

• Approvals
  CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE
•
