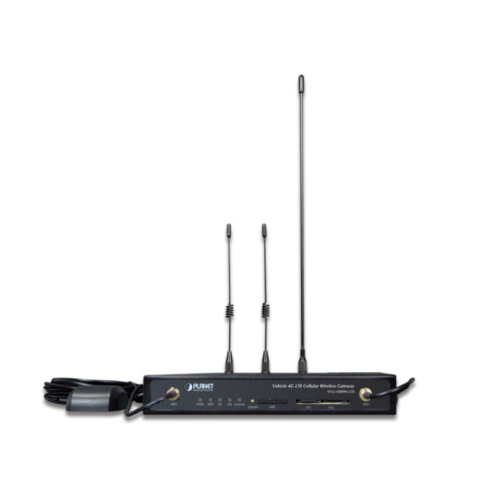

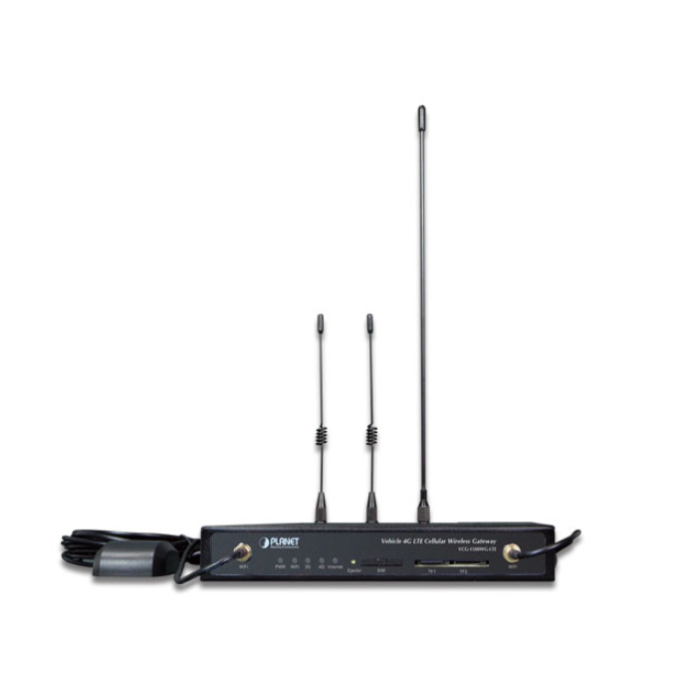

[VCG-1500WG-LTE] Planet Industrial Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C)
![[VCG-1500WG-LTE] Planet Industrial Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C)](/media/com_eshop/products/resized/VCG-1500WG-LTE-700x700.png "[VCG-1500WG-LTE] Planet Industrial Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C)")
MANUFACTURER:
Planet
P/N :
VCG-1500WG-LTE
Physical Port
4 10/100BASE-TX RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
1 10/100BASE-TX RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
1 4G LTE 2.3 dBi antenna
2 2.4G WiFi 2dBi antennas
4 10/100BASE-TX RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
1 10/100BASE-TX RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
1 4G LTE 2.3 dBi antenna
2 2.4G WiFi 2dBi antennas
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 4 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
SIM Interface 1 x SIM card slot with mini SIM card tray
Cellular Antenna 1 x 2dBi external antenna with SMA connector for LTE
Wi-Fi Antenna 2 x 2dBi external antennas with SMA connectors for 2.4GHz
GPS Antenna 1 x 28dB gain external antenna with SMA connectors for GPS -3m
USB Interface 1 x USB 2.0 for external storage
TF Card Interface 2 x TF cards for storing thousands of advertising data, max. capacity up to 128G for each
Connector Standard 4-pin vehicle power jack for power input
Reset Button > 5 sec: Factory default
Dimensions (W x D x H) 168.43 x 93.02 x 25.6 mm (not including antenna and connector)
Weight 537g (not including antenna)
Power Requirements – DC 6~32V DC, 1.5A
Power Consumption 3 watts/10.23 BTU
