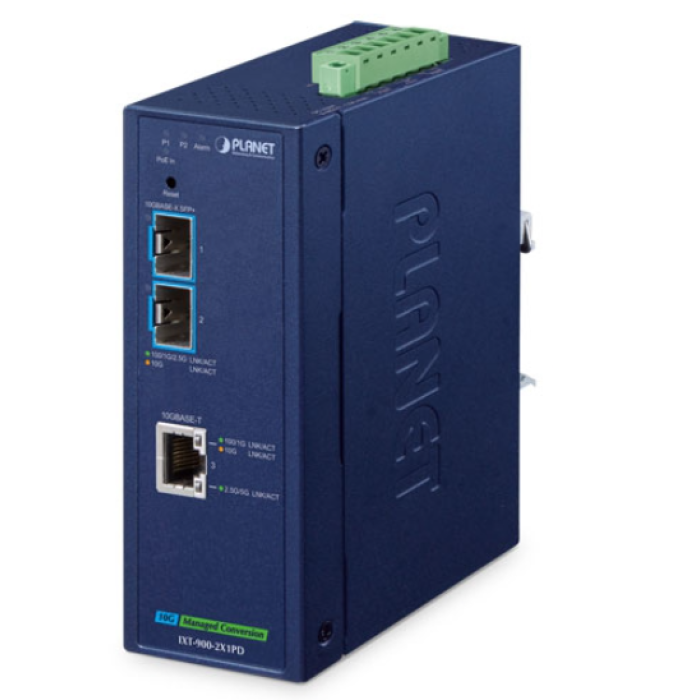

[IXT-900-2X1PD] Planet Industrial 2-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T PoE PD Managed Media Converter
![[IXT-900-2X1PD] Planet Industrial 2-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T PoE PD Managed Media Converter](/media/com_eshop/products/resized/IXT-900-2X1PD-700x700.png "[IXT-900-2X1PD] Planet Industrial 2-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T PoE PD Managed Media Converter")
MANUFACTURER:
Planet
P/N :
IXT-900-2X1PD
Physical Port
One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
Two 10G/2.5G/1G/100BASE-X SFP+ interfaces
One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
Two 10G/2.5G/1G/100BASE-X SFP+ interfaces
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Interface One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
PoE PD Yes
Fiber Interface Two 10G/2.5G/1G/100BASE-X SFP+ interfaces
Reset Button < 5 sec.: System reboot
> 5 sec.: Factory default
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Enclosure IP40 metal case
ESD Protection 4KVDC Contact / 8KVDC Air
Installation Wall-mount and DIN-rail kit installation
Dimensions (W x D x H) 50 x 86.4 x 135mm
Weight 604g
Power Requirement 9~48V DC, 24V AC or PoE input
Power Consumption 3.9W/13.3 BTU (No Loading) / 9.5W/32.4 BTU (Full Loading)
