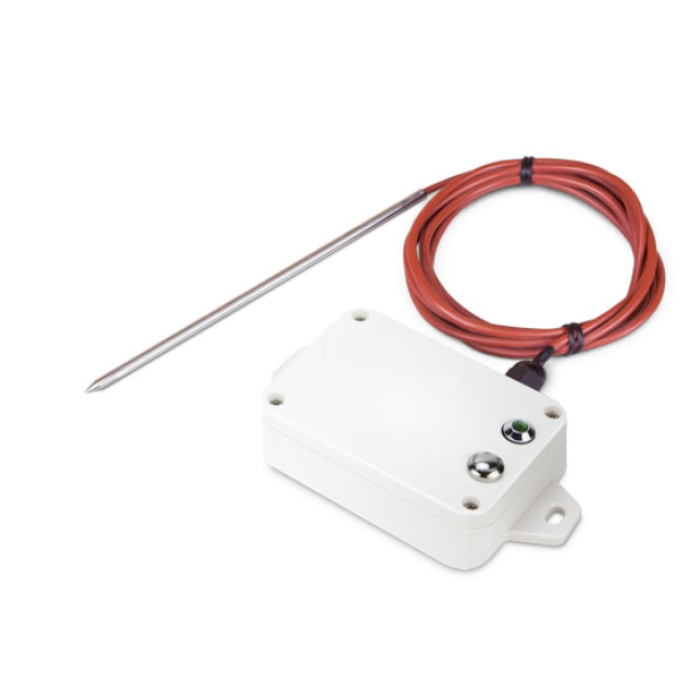

[LS200-PT-868M] Planet Industrial IP65 LoRaWAN Product Temperature Sensor (PT1000 Needle Probe -70~200 degrees C, EU868 Sub 1G)
![[LS200-PT-868M] Planet Industrial IP65 LoRaWAN Product Temperature Sensor (PT1000 Needle Probe -70~200 degrees C, EU868 Sub 1G)](/media/com_eshop/products/resized/LS200-PT-868M-700x700.png "[LS200-PT-868M] Planet Industrial IP65 LoRaWAN Product Temperature Sensor (PT1000 Needle Probe -70~200 degrees C, EU868 Sub 1G)")
MANUFACTURER:
Planet
P/N :
LS200-PT-868M
Product Temperature Sensor with PT1000 Needle Probe (-70~200 degrees C)
IP65 rating
LoRaWAN™ Class A compatible
IP65 rating
LoRaWAN™ Class A compatible
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Technology LoRaWAN
Frequency LS200-PT-868M
863–870 MHz
TX Power LS200-PT-868M
EU868 16dBm
IN865 20dBm (optional)
Power Supply 2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating Voltage DC 3.1V～3.65V
Battery Life Time 5 years
(25°C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current 25µA
Wake-up Current (Typical value) 9.94mA
Low Battery Threshold 3.2V
Dimensions (L x W x H) 112 x 88.19 x 32 mm
Weight 141 g
Probe Info PT1000 Platinum Thermal
Probe Temperature Detecting Range -70°C to 200℃
Probe Wire Length 2m
Probe Dimensions 5mm in diameter * 150mm in length, needle probe
Ingress Protection IP65
Operating Temperature -20°C to 55°C
Relative Humidity <90% RH (non condensing)
Storage Temperature -40 °C ~ 85 °C
