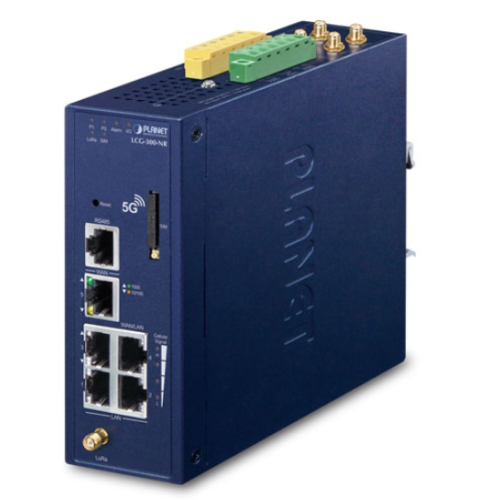

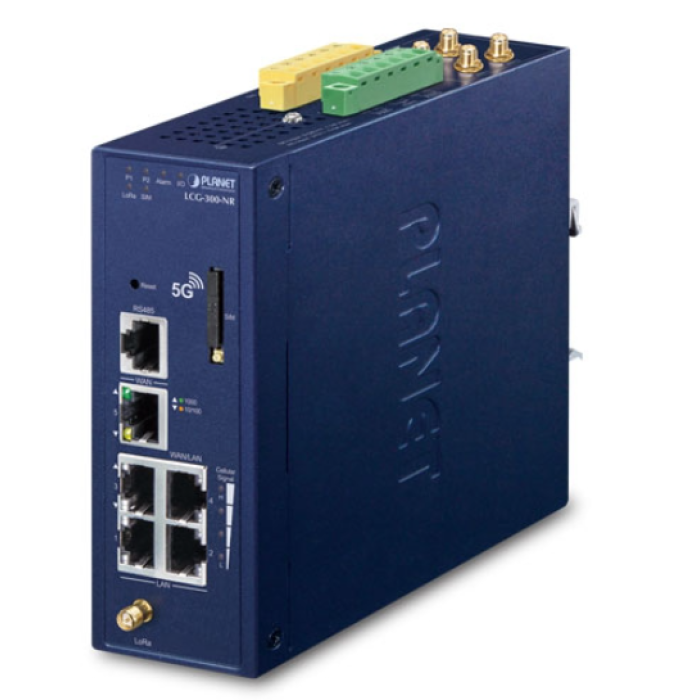

[LCG-300-NR] Planet Industrial LoRaWAN Wireless Gateway with 5-Port 10/100/1000T
![[LCG-300-NR] Planet Industrial LoRaWAN Wireless Gateway with 5-Port 10/100/1000T](/media/com_eshop/products/resized/LCG-300-NR-700x700.png "[LCG-300-NR] Planet Industrial LoRaWAN Wireless Gateway with 5-Port 10/100/1000T")
MANUFACTURER:
Planet
P/N :
LCG-300-NR
Highlights.
Supports EU868, US915, AS923 (Sub 1G).
8 programmable parallel demodulation paths.
2 x DI/DO and 1 serial port (RS485) for Modbus applications.
Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards.
Supports EU868, US915, AS923 (Sub 1G).
8 programmable parallel demodulation paths.
2 x DI/DO and 1 serial port (RS485) for Modbus applications.
Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards.
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports
5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial Interface RJ45 serial port
LoRa Antenna 2 dBi external antennas with SMA connectors for LoRa
Enclosure IP30 metal case
Installation DIN-rail, desktop, wall-mounting
Dimensions (W x D x H) 50 x 135 x 135 mm
Weight 0.9 kg
Power Requirements – DC 9~54V DC, 1.3A Max.
Power Consumption 12.5 watts/ 42.7 BTU
