ITK
MANUFACTURER: Planet

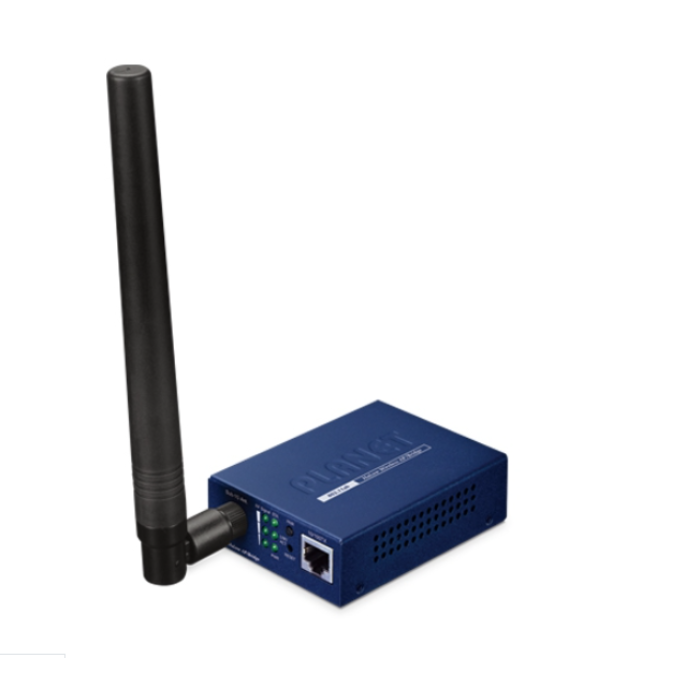

P/N : HLB-100-EU868

Supports IEEE 802.11ah wireless technology.
1 x 10/100 RJ45 port
1 x RS485 serial interface
1 x pair button
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Interfaces
1 10/100BASE-TX RJ45 port including
1 LAN/WAN port
Supports WAN mode and LAN mode, configurable via software.
Antenna Connector 1 × 50 Ω SMA Connector (Center Pin: SMA Female)
Serial Interface 1 x RS485 serial interface
Button
1 x reset button
Press over 5 seconds to reset the device to factory default
1 x pair button
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight 223g
Power Requirements 5V 2A
Power Consumption 2W
Installation Wall-mount
LED Indicators Power, station, strength signal
