MANUFACTURER: Planet

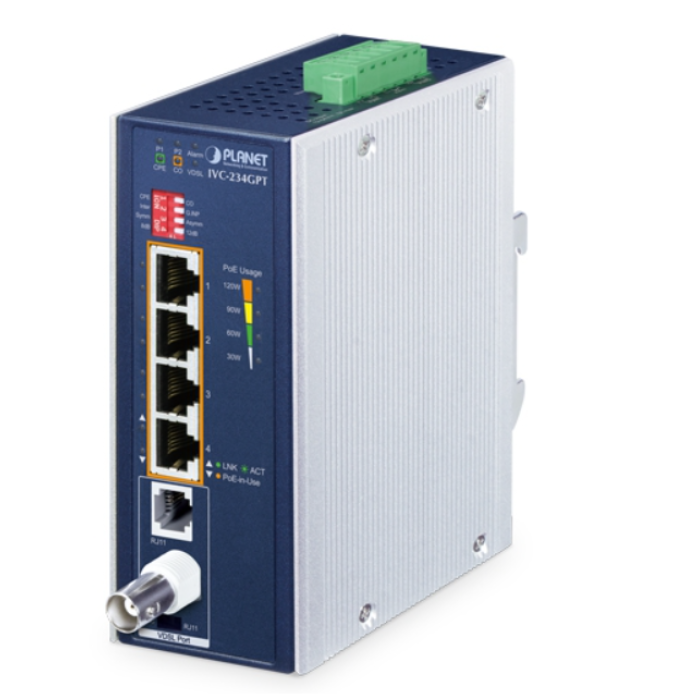

P/N : IVC-234GPT

Physical Port
Four 10/100/1000BASE-T RJ45 ports with IEEE 802.3af/802.3at PoE Injector function
One RJ11 female phone jack and one BNC female connector for VDSL2 Transmission
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
LAN Ports
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports with 802.3at PoE+ injector function
DIP Switch & Functionality
DIP-1:Select CO or CPE mode.
DIP-2:Select G.INP or Interleaved mode.
DIP-3:Select Band Profile (Asymmetric or Symmetric)
ESD Protection 6KV DC
Dimensions (W x D x H) 56 x 86.1 x 135mm
Weight 736g
Power Requirements DC 12~54V
Redundant power with reverse polarity protection
Power Consumption
DC 12V: 60 watts/204BTU
DC 24V: 100 watts/341BTU
DC 54V: 122 watts/416BTU
Housing IP30 Aluminum Case
DIP-4:Select SNR of 12dB or 8dB.
